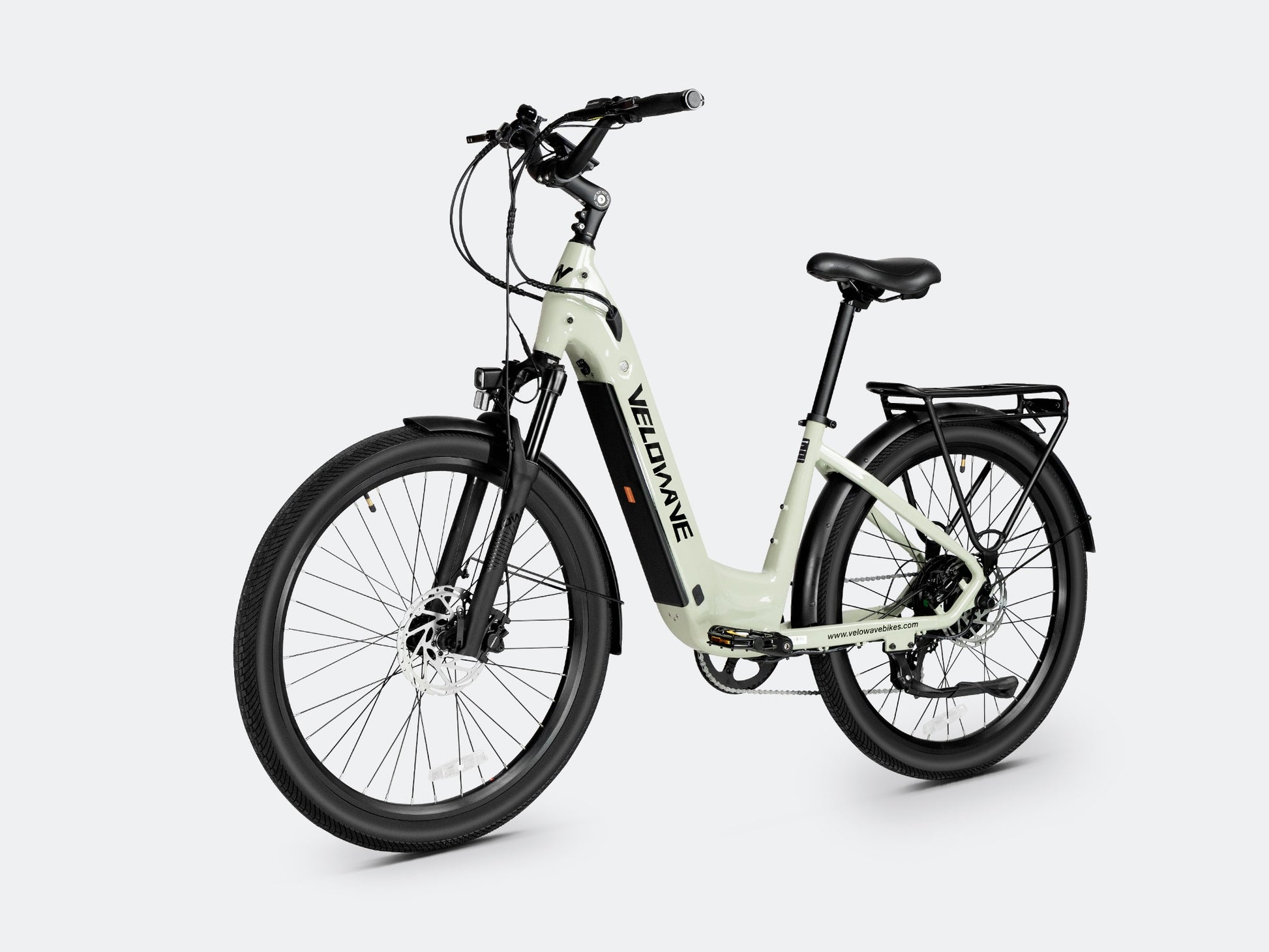

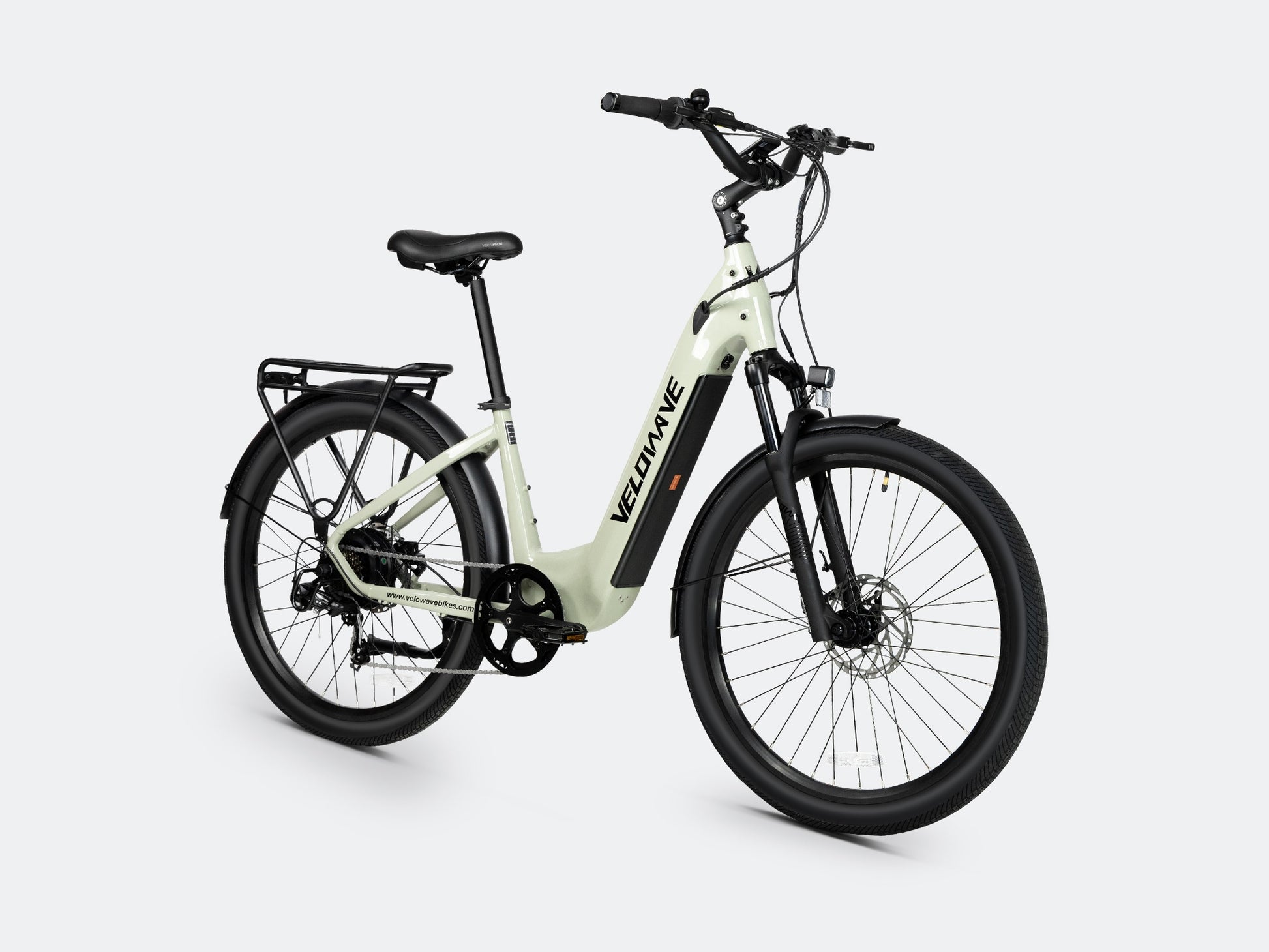

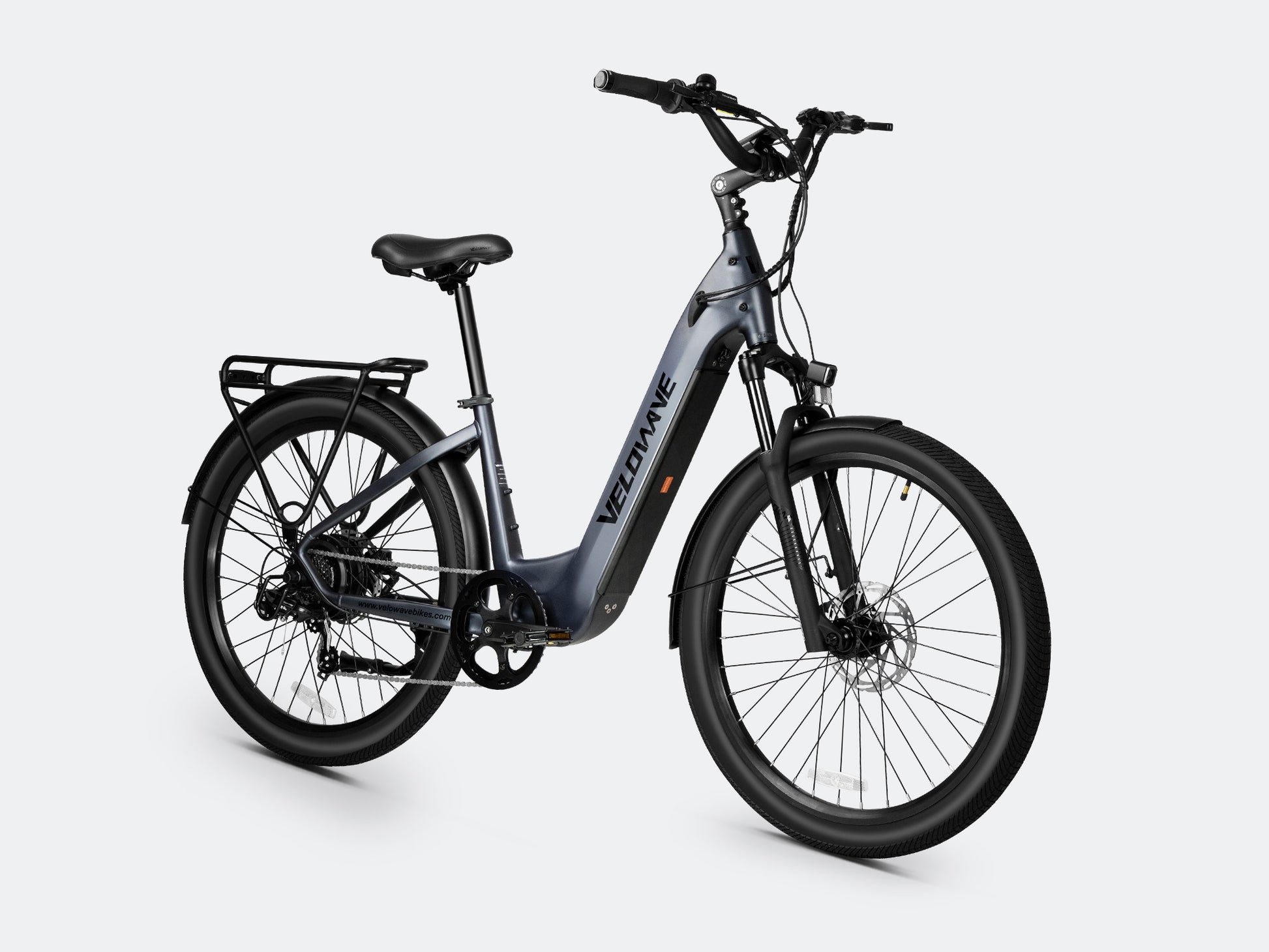

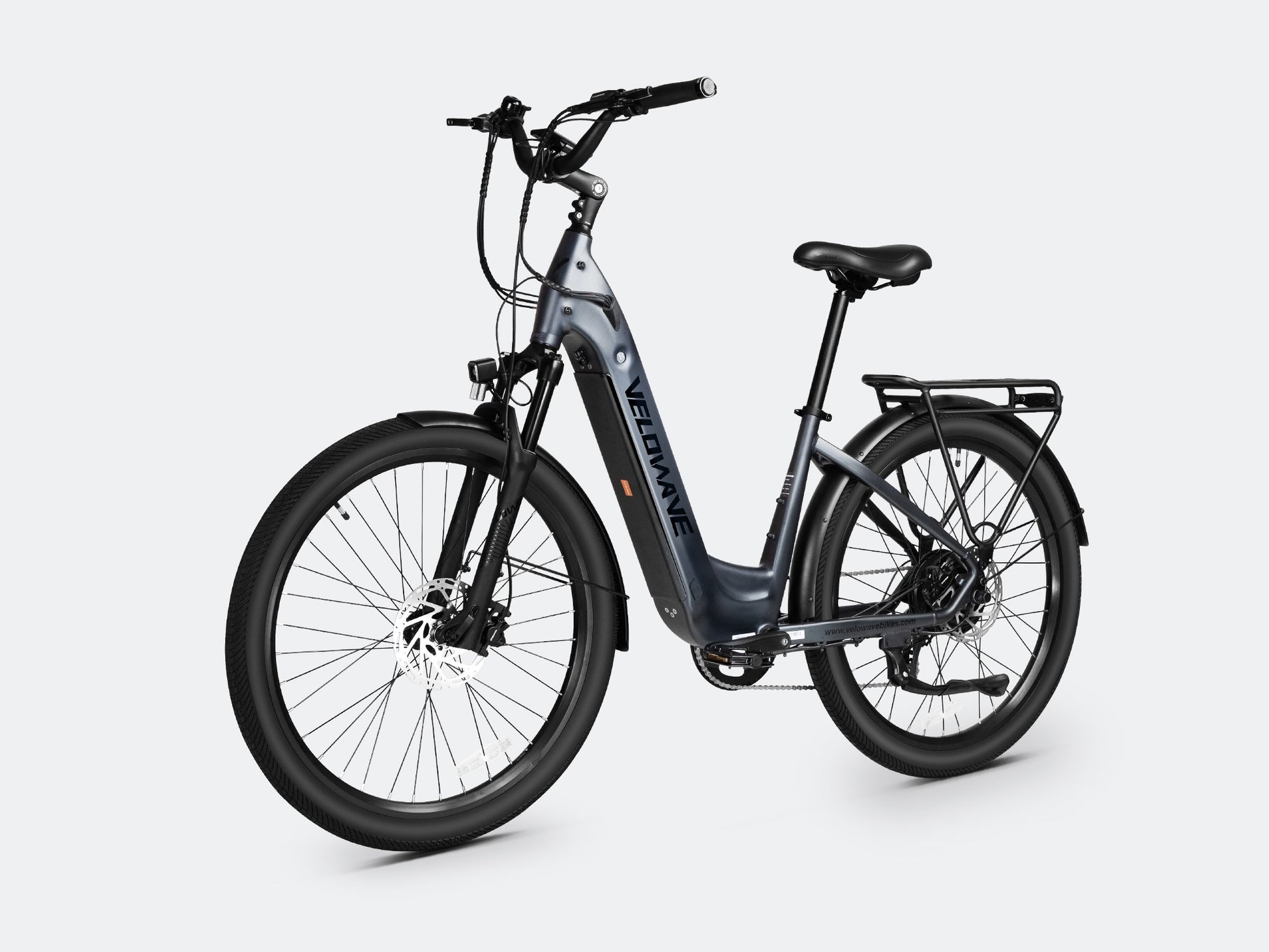

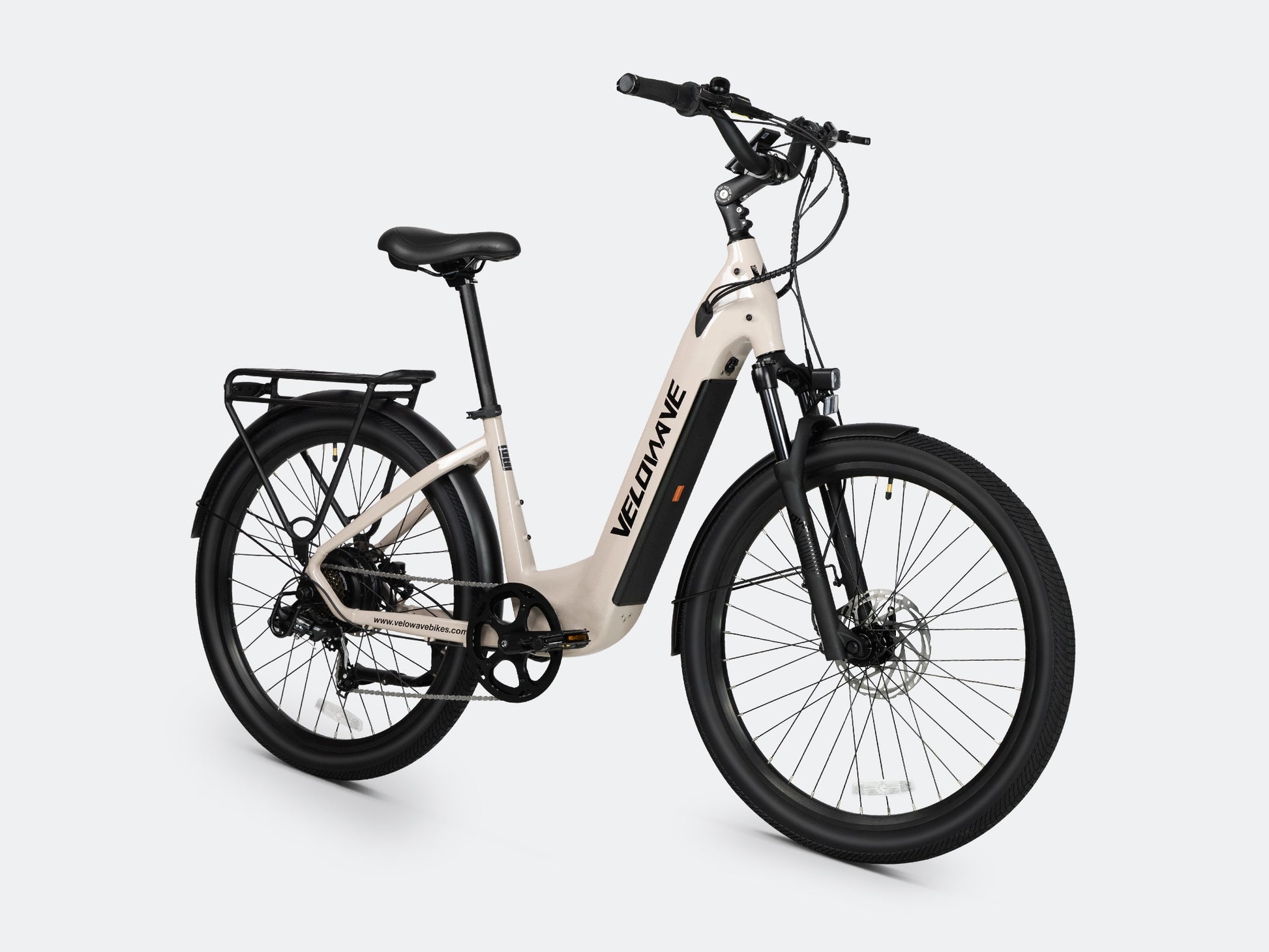

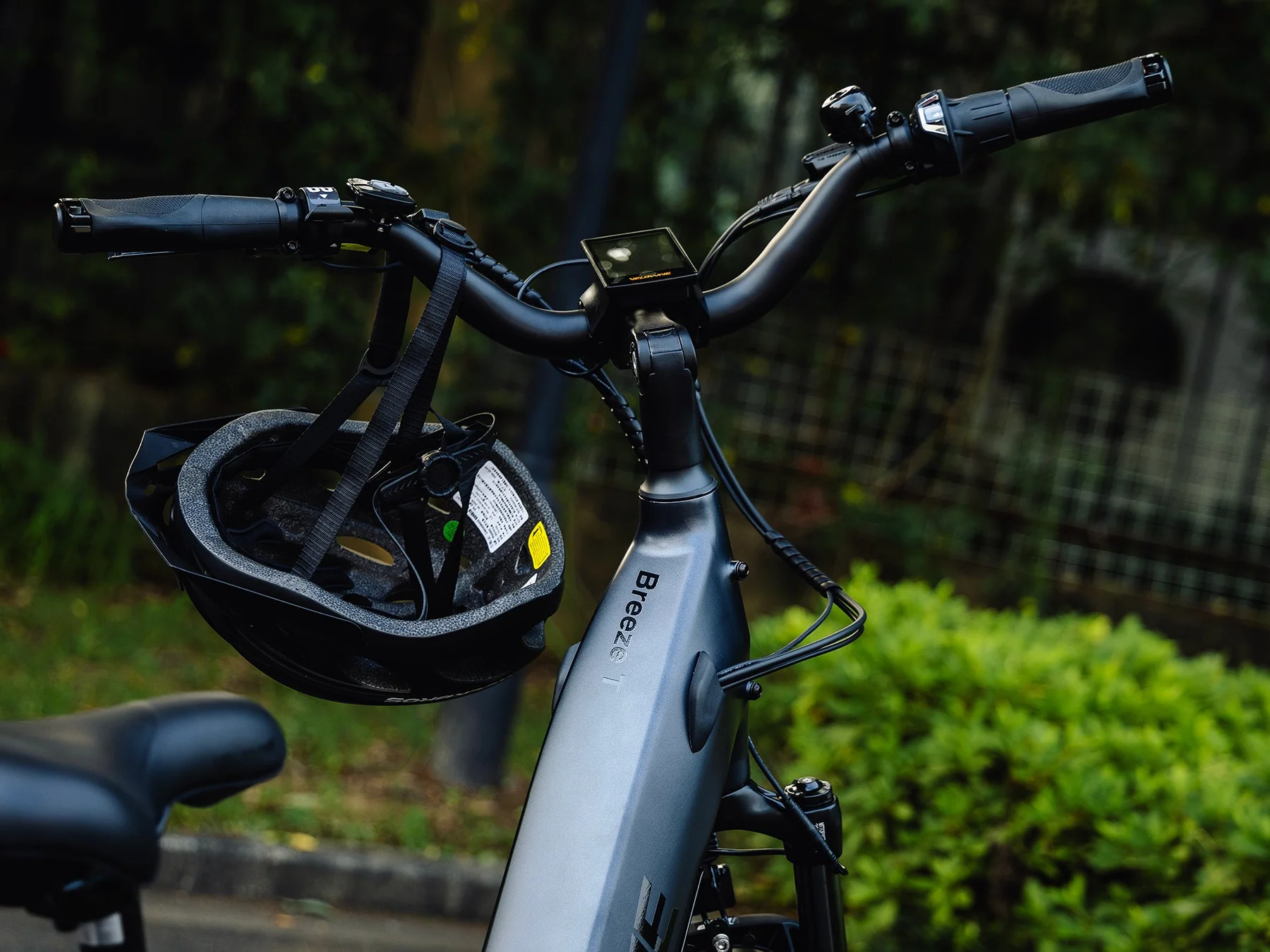

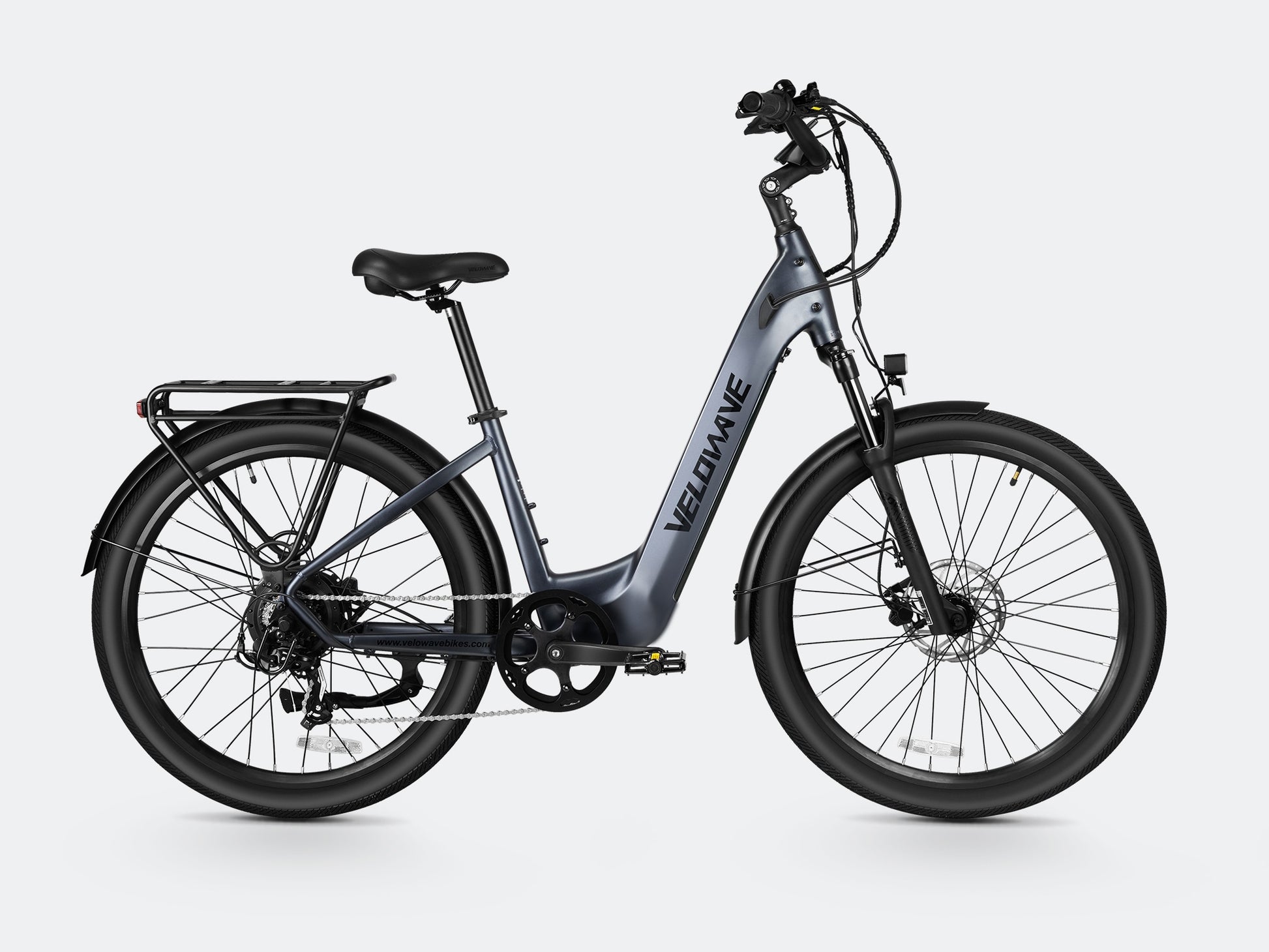

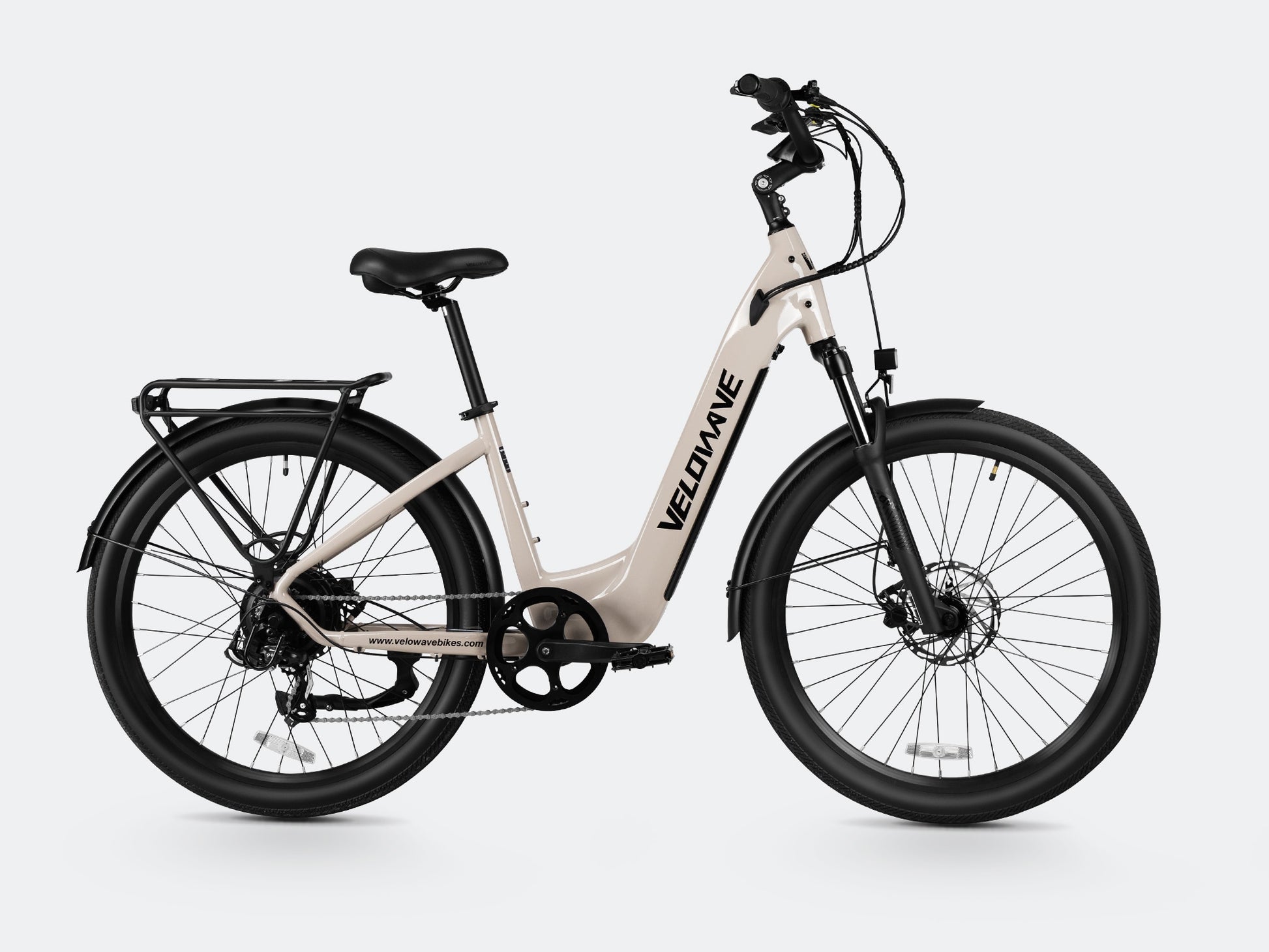

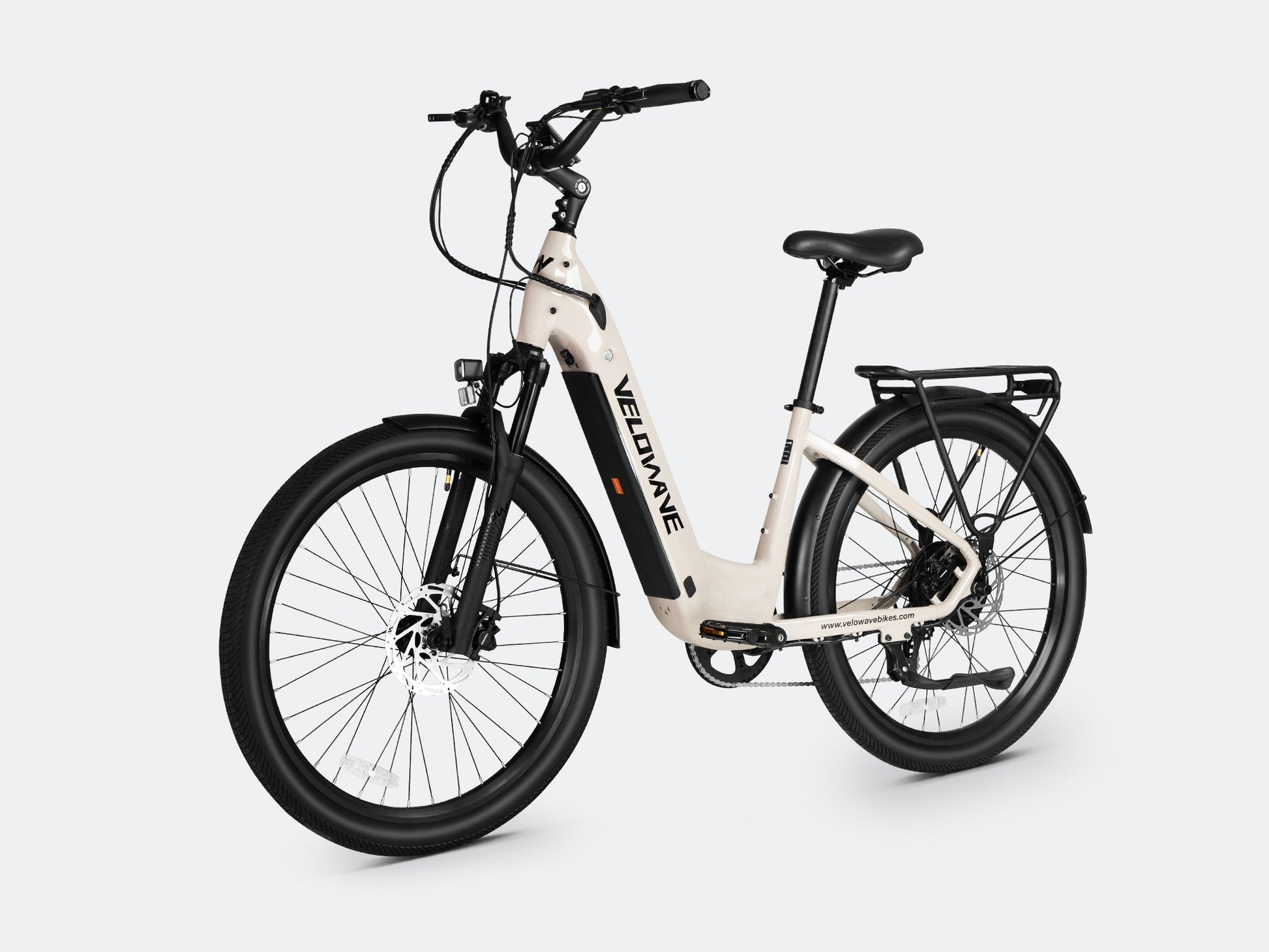

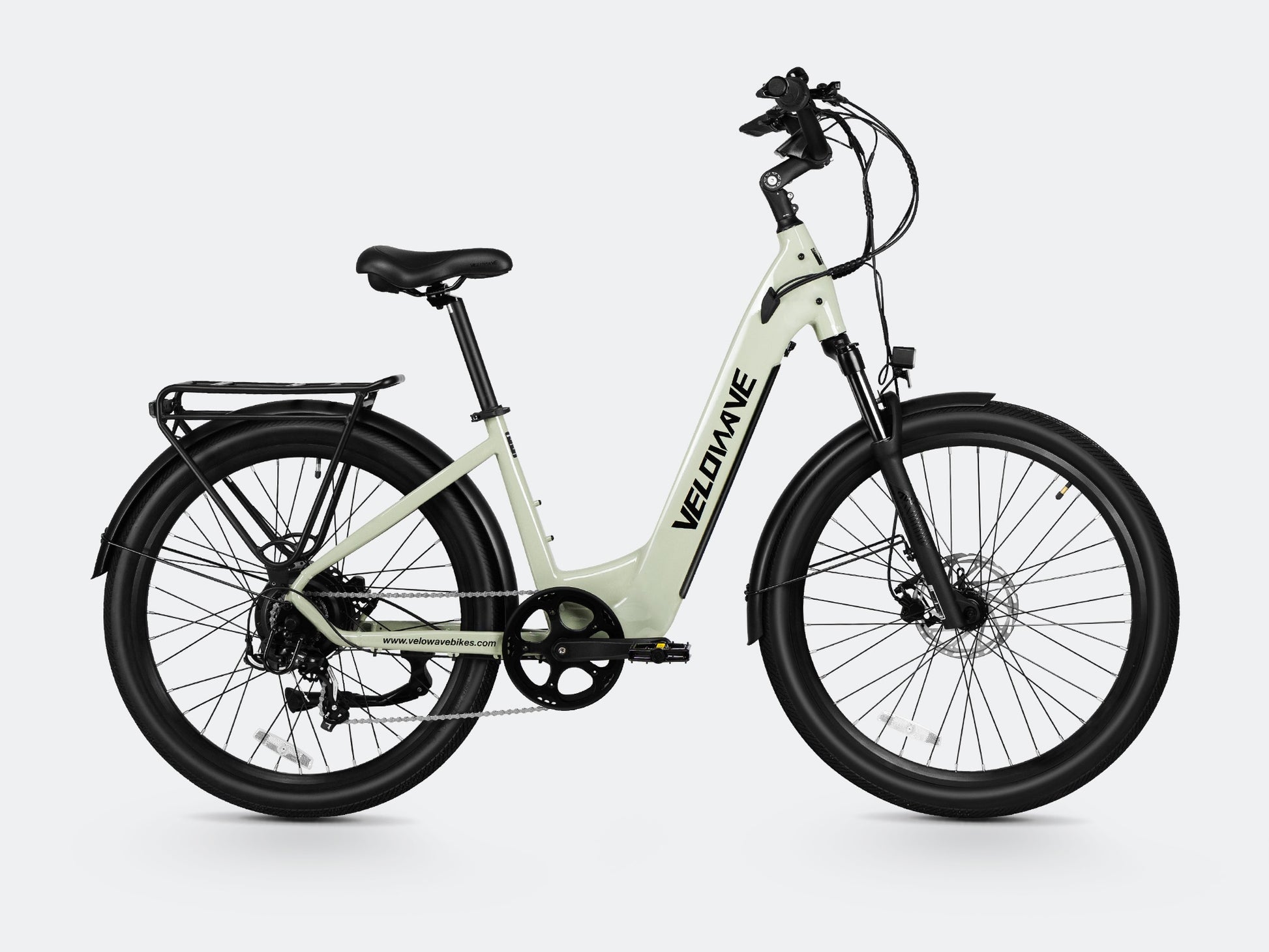

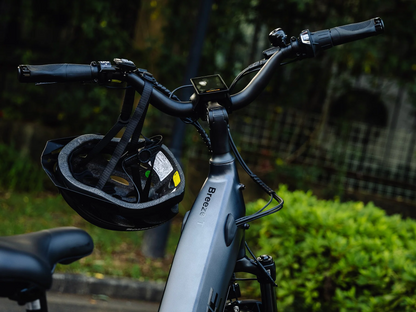

Breeze T Torque Sensor
The Breeze T stands out with its impressive 500W motor and peak power of 680W, providing robust acceleration and efficient performance. Its removable battery ensures an extensive range of up to 90 miles on a single charge, making it the perfect choice for long-distance commuters and adventure seekers alike. The frame design is ideal for riders who need a little extra ease when getting on and off.
Specs & Size
| Size | 27.5'' |
| Total Length | 1829mm |
| Head Tube Length | 185mm |
| Seat Tube | 420mm |
| Handlebar Height | 1195mm |
| Wheelbase | 1129mm |
| Standover Height | 696mm |
| Reach | 393.6mm |
| Seat Height Min/Max | 801mm/1008mm |
General
- Classes: Class 3 (Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range: Up to 90 +Milesx on PAS, 37+ Milesx on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with Eco assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset
- Frame: 6061 Alluminum Alloy with Internal Battery
- Fork: Hydraulic Suspension Fork with 100mm travel, with lockout
Wheels
- Rim Material: Aluminum
- Rim Size: Aluminum 27.5" 13Gx36H Front & Rear
- Front Wheel Spokes: Black Stainless, 27.5" Front 13Gx261L/263L, Rear 12Gx222.5L
- Tubes: Butyl Rubber, Schrader Valve
- Hubs: Front Axles with quick release mechanism; disc hub with 6 bolts
- Tire: Kenda Tires
- Tire Size: Kenda 27.5"x2.2"
E-system
- Battery:Removable Internal Lithium-ion Battery 48V15AH (720Wh) with LG cells
- Charger:48V 2 Amp Charger, Approx. 8 Hour Charging
- Motor: 500W (960W), 65Nm

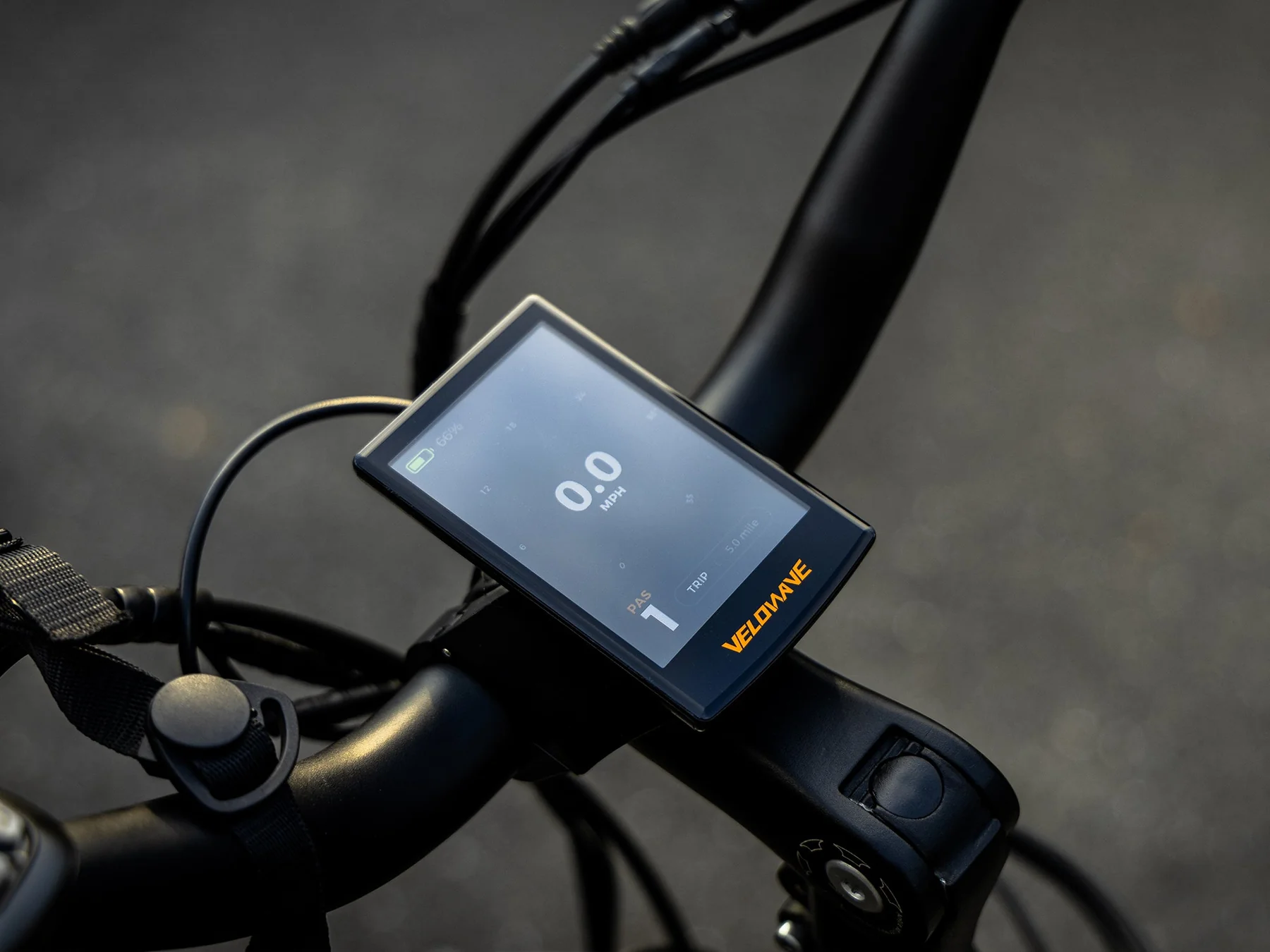

- Display: Large Screen Display with Backlight, Color screen
- Pedal Assist: 5 Levels (1/2/3/4/Sport)
- Sensor: Torque Sensor
- Throttle: Throttle on demand - Throttle from a complete stop
- Front Light: Front 6-48V LED Light 90 LUX
- Tail Light: Rear Break Light, 12V 20 LUX
Drivetrain
- Shift Lever: Shimano 7-Speed Rotary Shift Lever
- Rear Derailleur: SHIMANO TOURNEY 7-Speed
- Crank & Chainring: 170MM W/48T
- Freewheel: 14-28T, 7-Speed Freewheel
- Pedal: Alloy Platform Pedals
- Chain: KMC 116 Link Anti-rust Chain
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, Ø30.4x350mm
- Seat Clamp: Ø35mm Quick Release
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 40mm, RISE:+7°
- Handlebar: Aluminum Ø22.2mm, Width 700mm
- Headset: Sealed Bearing Headset
- Grips: Ergonomic Comfort
- Brake: Tektro Hydraulic Disc Brakes w/180mm discs
- Brake rotor: Tektro Hydraulic Disc Brakes w/180mm discs
- Kickstand: Alloy, Rear Mount
- Fenders: Aluminum 27.5"x60mm
- Rear Rack: Aluminum alloy, Max Load 55 LBS
Weight
- Net Weight: 30KG/66LBS (including battery)
- Gross Weight: 36KG/79LBS
- Battery Weight: 3.797KG/8.37LBS
- Weight limit: 300 lbs Payload Capacity
Size
- Product Size: 1835x720x1200mm
- Packing Size: 1500x260x860MM
