Seat Width
44.8cm/17.6"
Seat Depth
30.5cm/12"
Seat Height
29cm/11.4"
Seat Heiaht from Ground
42.8cm/16.9''
Seat Height from Deck
33.7cm/13.3”
Wheel Base
75.4cm/29.7"
Length Expanded
97.9cm/38.5"
Width
51.2cm/20.1"
Height Expanded
76.9cm/30.3"
| CATEGORY | SPECIFICATION |
|---|---|
| Overall Width |
20.08''
|
| Overall Length |
39.37''
|
| Ground Clearance |
1.97'' at front wheel connection
0.787'' at rear anti-roll wheel
|

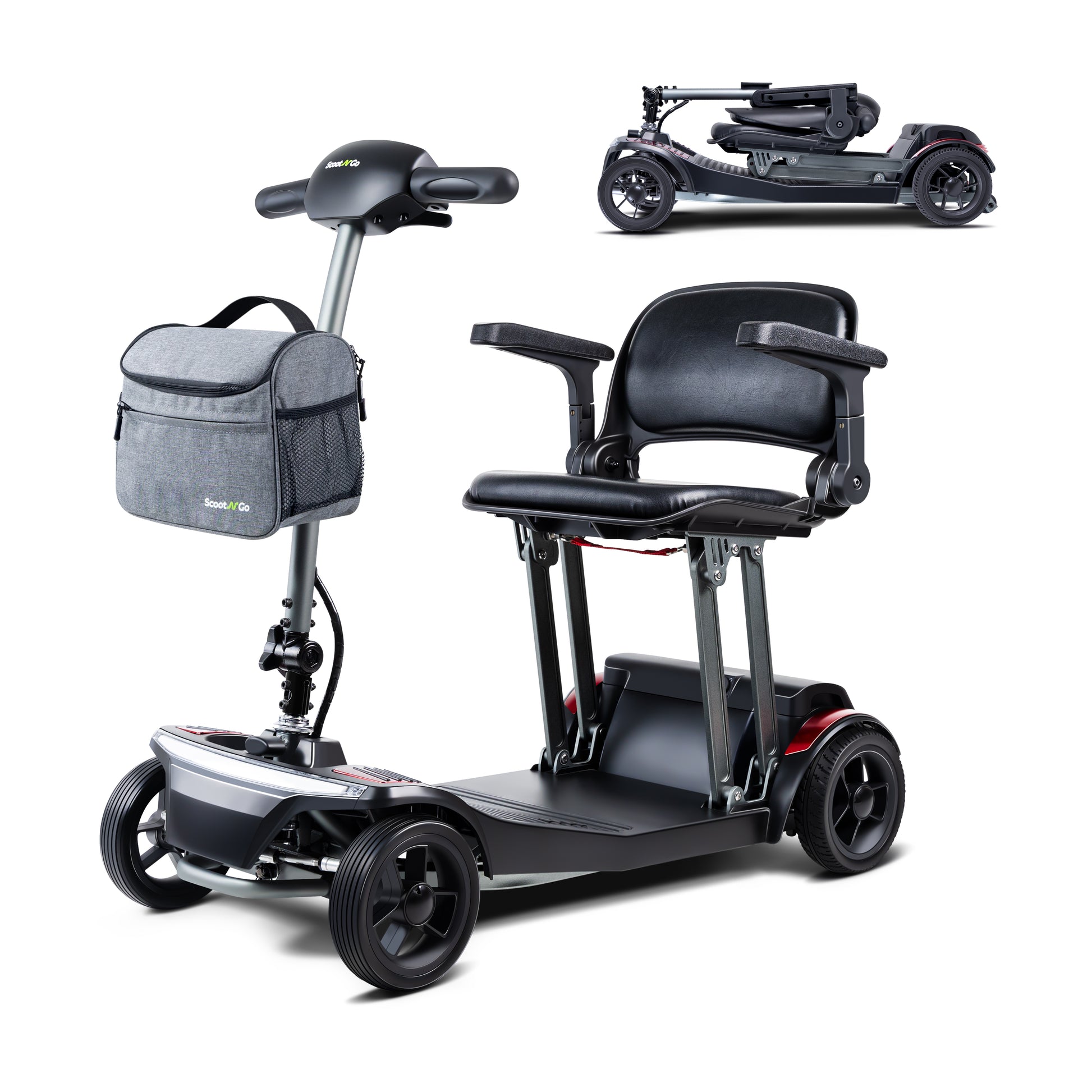

| Folded Size |
L 39.37'' x W 20.08‘’ x H 12.6''
|
| Rear Wheels |
8" x 1.97"
|
| Front Wheels |
8" x 1.97"
|
| Drivetrain |
Rear wheel drive, sealed transaxle, 24-volt
brushless
|
| Braking System |
Regenerative and electromechanical
|
| Braking Distance |
31.5"
|
| Suspension Type |
N/A
|
| Seat Sizes |
16.14'' x 14.57‘’
|
| Seat-to-Floor Range |
19.88‘’
|
| Per Charge Range |
Up to 15 miles
|
| Standard Electronics |
45A Brushless controller
|
| Component Weights |
50.16 LBS with battery
|
| Battery Requirements |
24V, 12AH
|
| Battery Charger |
24V 2A
|
| Weight Capacity |
298 lbs
|
| Turning Radius |
47.24‘’
|
| Climbing Angle |
6°
|
| Maximum Speed |
3.7mph
|
| Warranty |
Frame: 5 years
Drivetrain: 1-year Electronics: 1-year Battery: 1-year |
