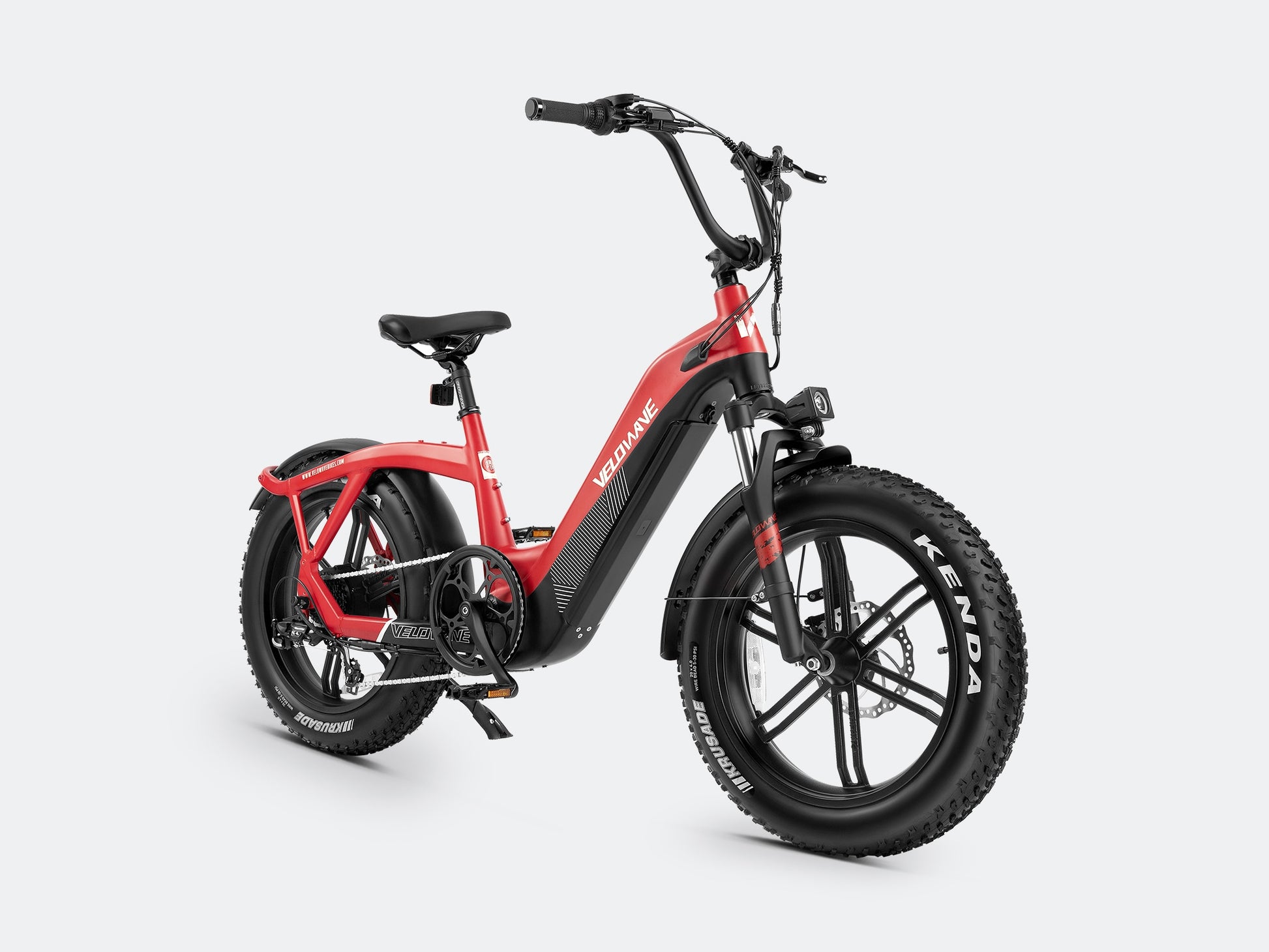

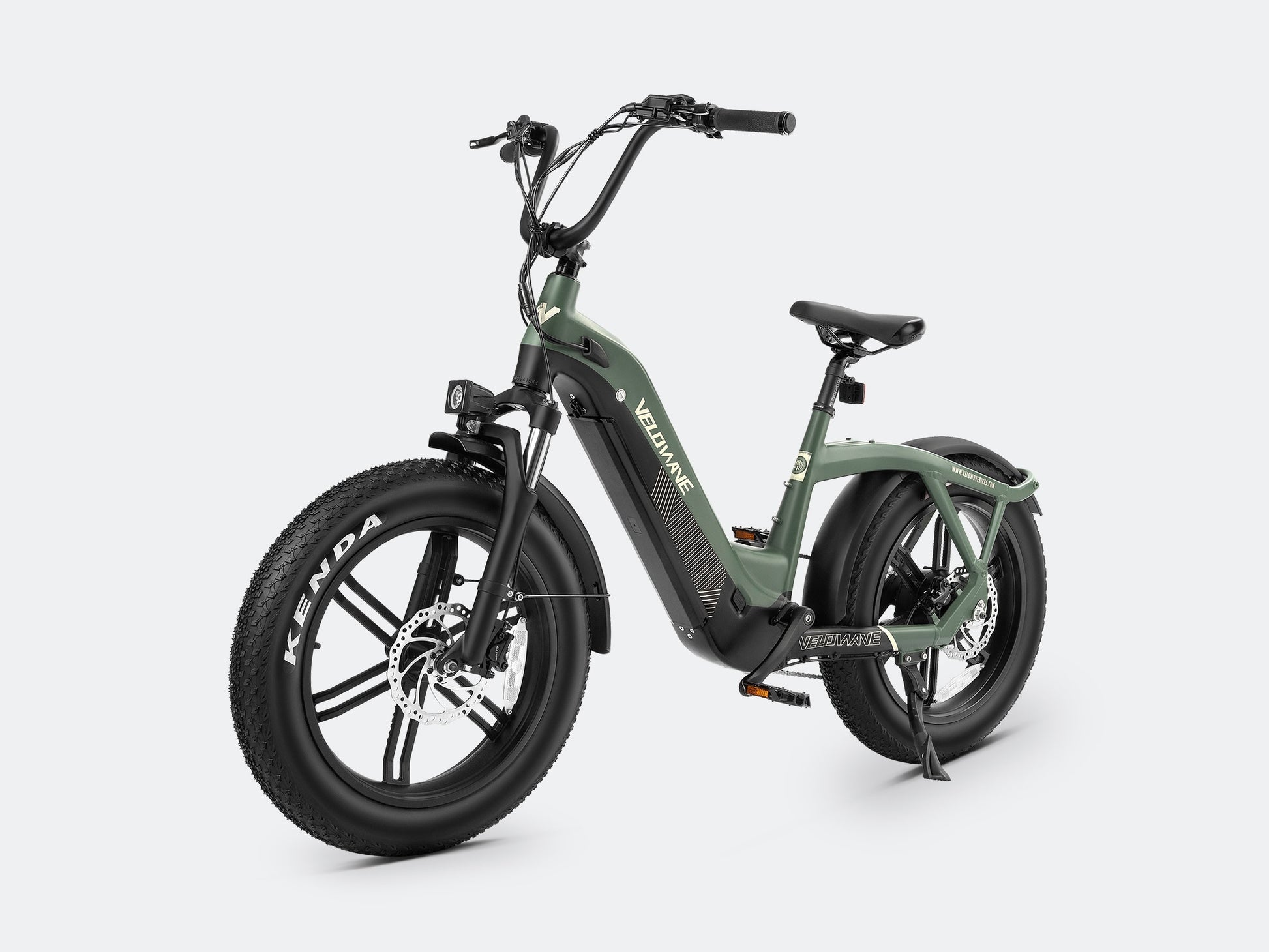

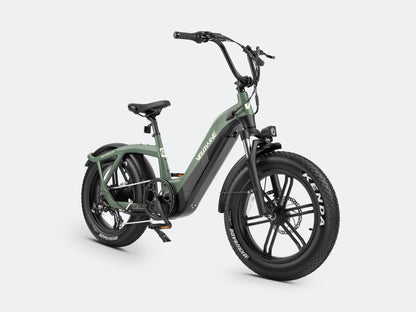

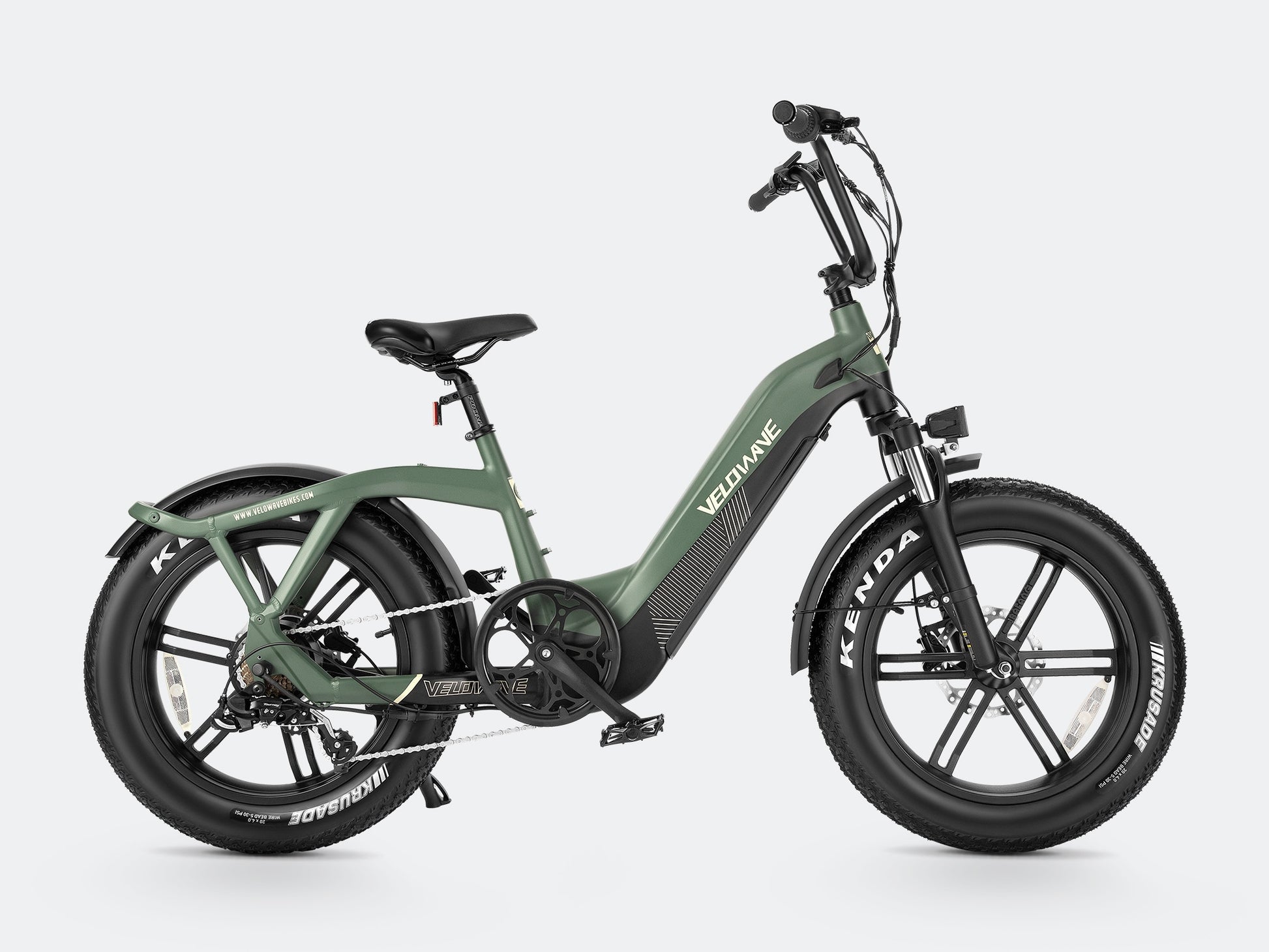

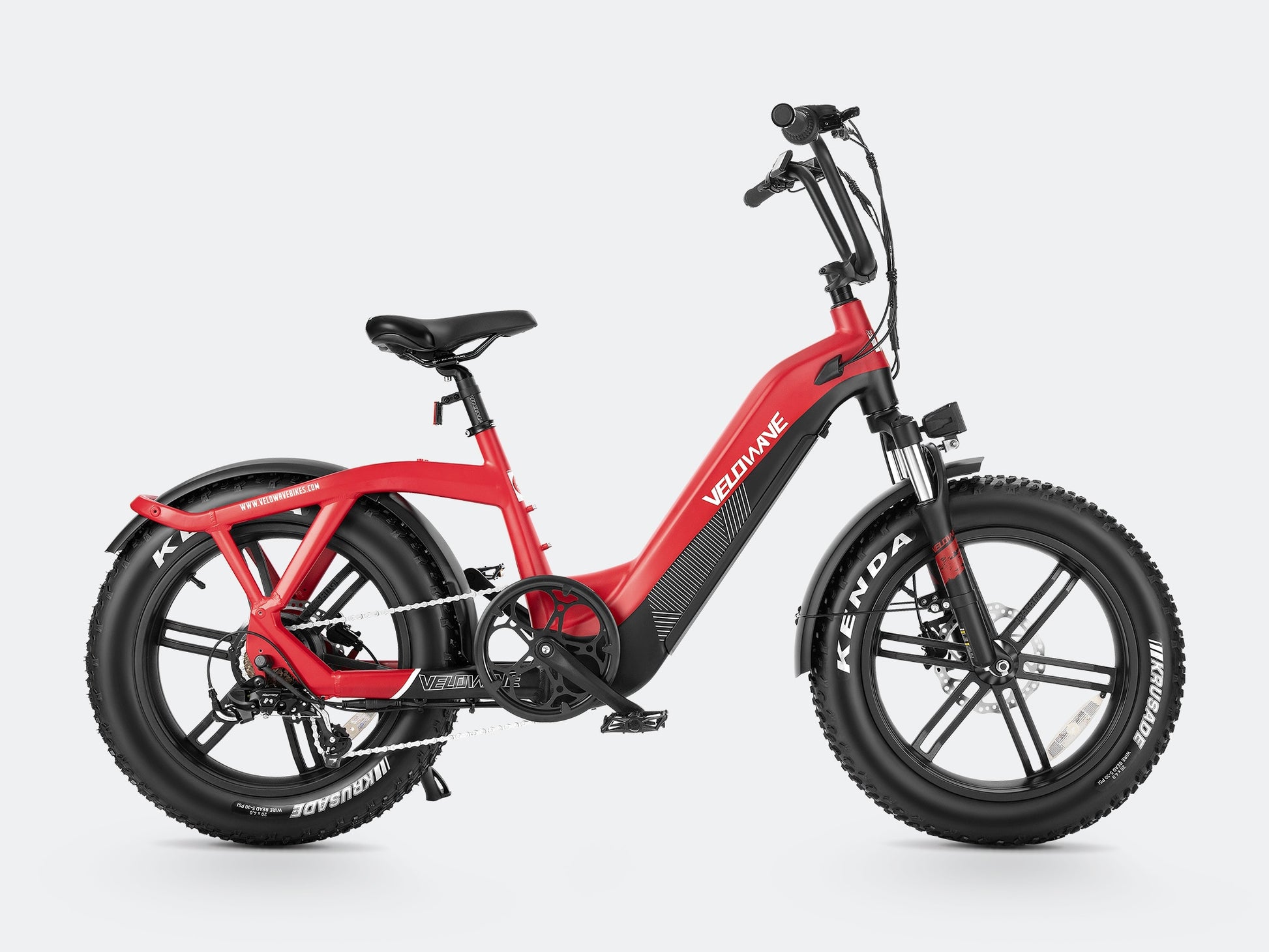

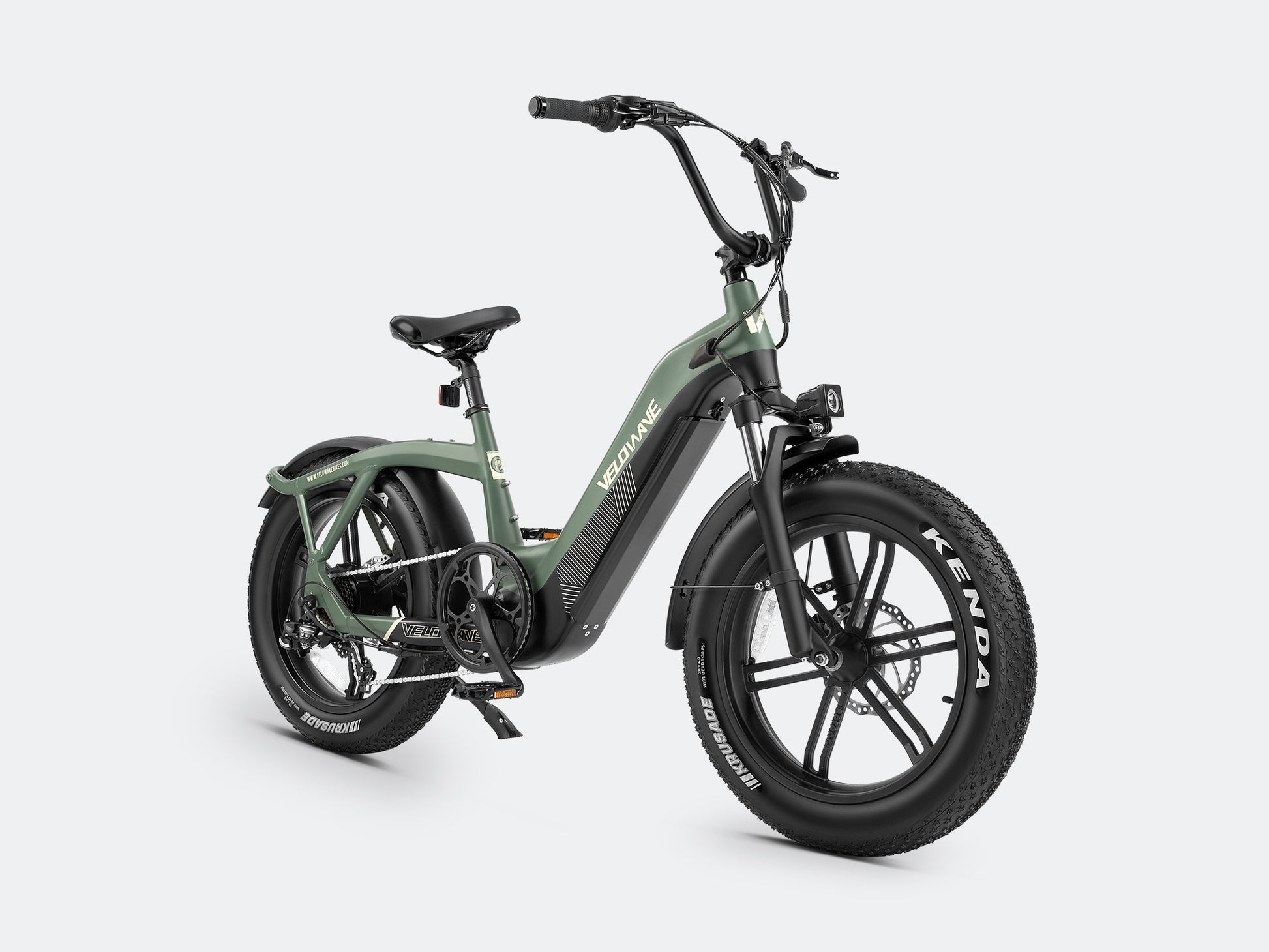

Pony
Ride with ease and confidence on Pony - this E-Bike designed for any adventure. Its step-through frame design allows riders to easily hop on and off, while its stable wide tires provide traction on any terrain - from sandy beaches to snowy mountains. Experience exhilarating rides like never before with Pony!
Specs & Size
| Frame Size | Standard (mm) |
| Handlebar Height | 1130mm |
| Reach | 440mm |
| Head Tube Length | 173mm |
| Seat Tube Length | 349mm |
| Standover Height | 670mm |
| Wheelbase | 1131mm |
| Total Length | 1715mm |
| Seat Height Min/Max | 775/990mm |
General
- Classes: Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 25MPH by pedal, 20MPH by throttle
- Range: 25 to 40+ Mile by Pedal; 23+ Mile by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork: Hydralic Suspension Fork
- Fenders: Included
Wheels
- Rim Material: Aluminum
- Rim Size: 20 x 3.0
- Rim Type: Wheel with Integral Hub
- Tire: Kenda Fat Tires
- Tire Size: 20" x 4.0"
E-system
- Battery: 48V 15Ah, 720Wh, LG 21700 Cells
- Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
- Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar: Alloy, 750mm width
- Grips: Nylon Lock-on
- Brake: Front & Rear Hydralic Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, Ø30.4*350mm
- Stem: Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
- Handlebar: Aluminum Ø31.8mm, Width 710mm
Weight
- Net Weight: 36kg(79.4lb)
- Gross Weight: 45.6kg(100.5lb)
- Battery Weight: 4.2kg(9.3lb)
- Weight limit: 150kg(330lb) Payload Capacity
Size
- Product Size: 1720x1130x750mm
- Packing Size: 1450x320x800mm
